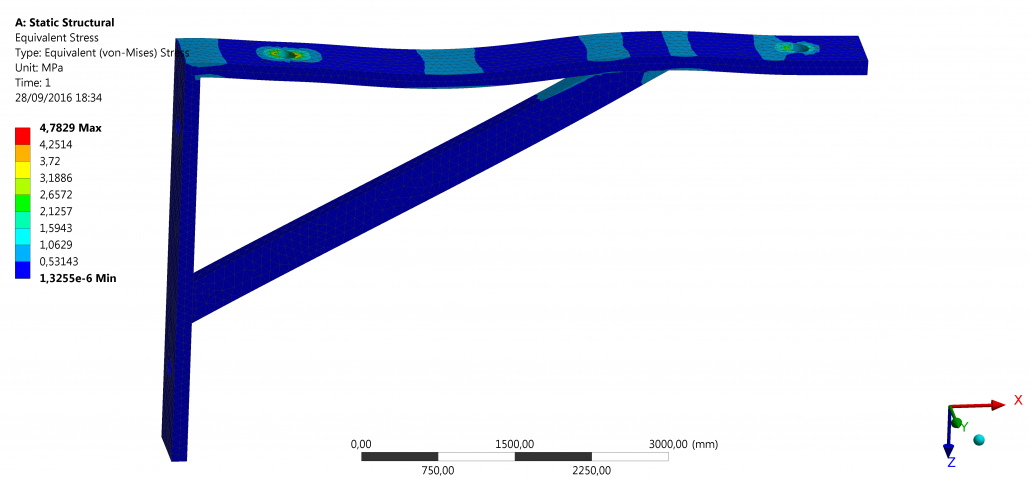

[vc_section css=”.vc_custom_1562153483270{padding-top: 40px !important;}”][vc_row][vc_column width=”1/2″][vc_gallery interval=”3″ images=”3813,3814″ img_size=”500×300″][/vc_column][vc_column width=”1/2″][vc_column_text]This demo illustrates the connection between KIMEME, Creo Parametric and Ansys. This demo optimize the geometry of a bracket, designed to support a shelf and charged with a given pressure, in order to minimize stress. Von Mises stress value is calculated by means of FEM analysis, carried on by Ansys, while the aspect ratio of the geometry is modified by Creo Parametric.[/vc_column_text][vc_tta_accordion shape=”square” color=”white” active_section=”1″][vc_tta_section title=”DESIGN VARIABLES” tab_id=”1553179762281-9cff1c87-79d60e7b-660e18b5-0145″][vc_column_text]Support dimension [10…200] mm[/vc_column_text][/vc_tta_section][vc_tta_section title=”CONSTRAINTS” tab_id=”1553179762300-fff844f2-c11d0e7b-660e18b5-0145″][vc_column_text]Support dimension must be shorter than bracket length[/vc_column_text][/vc_tta_section][vc_tta_section title=”OBJECTIVES” tab_id=”1553180485145-d04b5cb9-574e0e7b-660e18b5-0145″][vc_column_text]Minimize Von Mises stress[/vc_column_text][/vc_tta_section][vc_tta_section title=”OPTIMIZATION ALGORITHM” tab_id=”1553180487891-c76fbf68-56fb0e7b-660e18b5-0145″][vc_column_text]Differential Evolution[/vc_column_text][/vc_tta_section][vc_tta_section title=”RUNS” tab_id=”1562153427541-1e0927bc-5718″][vc_column_text]2000 evaluations, with parallel execution on 4 workstations using KIMEME Network. Execution time: 30 minutes.[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space height=”70px”][/vc_column][/vc_row][/vc_section]
